Vertical Grout Silos & lifting cage

APT Global Marine and offshore engineering UAE is delighted to announce the completion of manufacture and delivery 100-ton silos for the prestigious offshore wind project in Taiwan.

These 100-ton silos are integral to supporting offshore wind farm operations, providing efficient storage and transportation capabilities to facilitate smooth project execution.

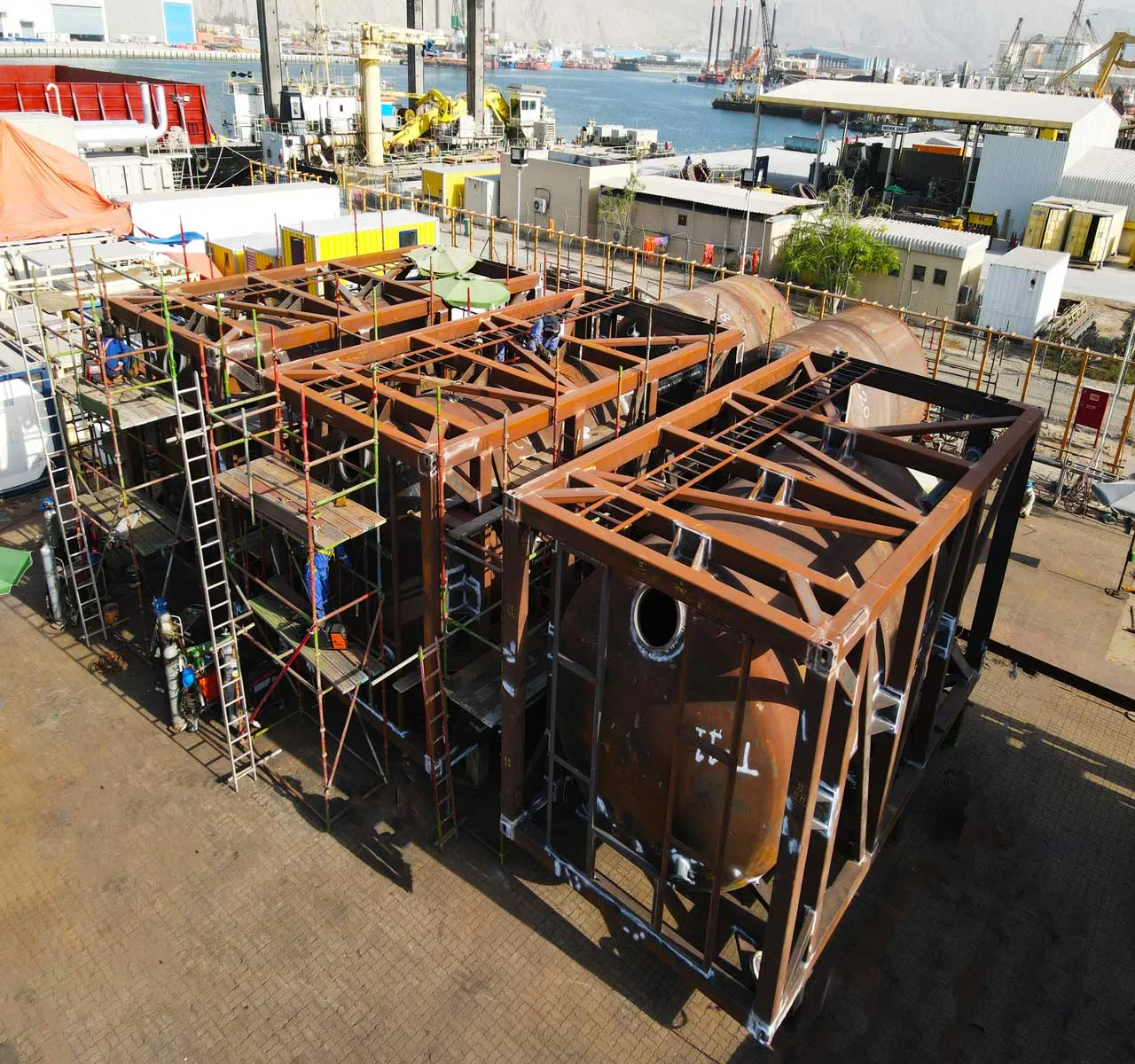

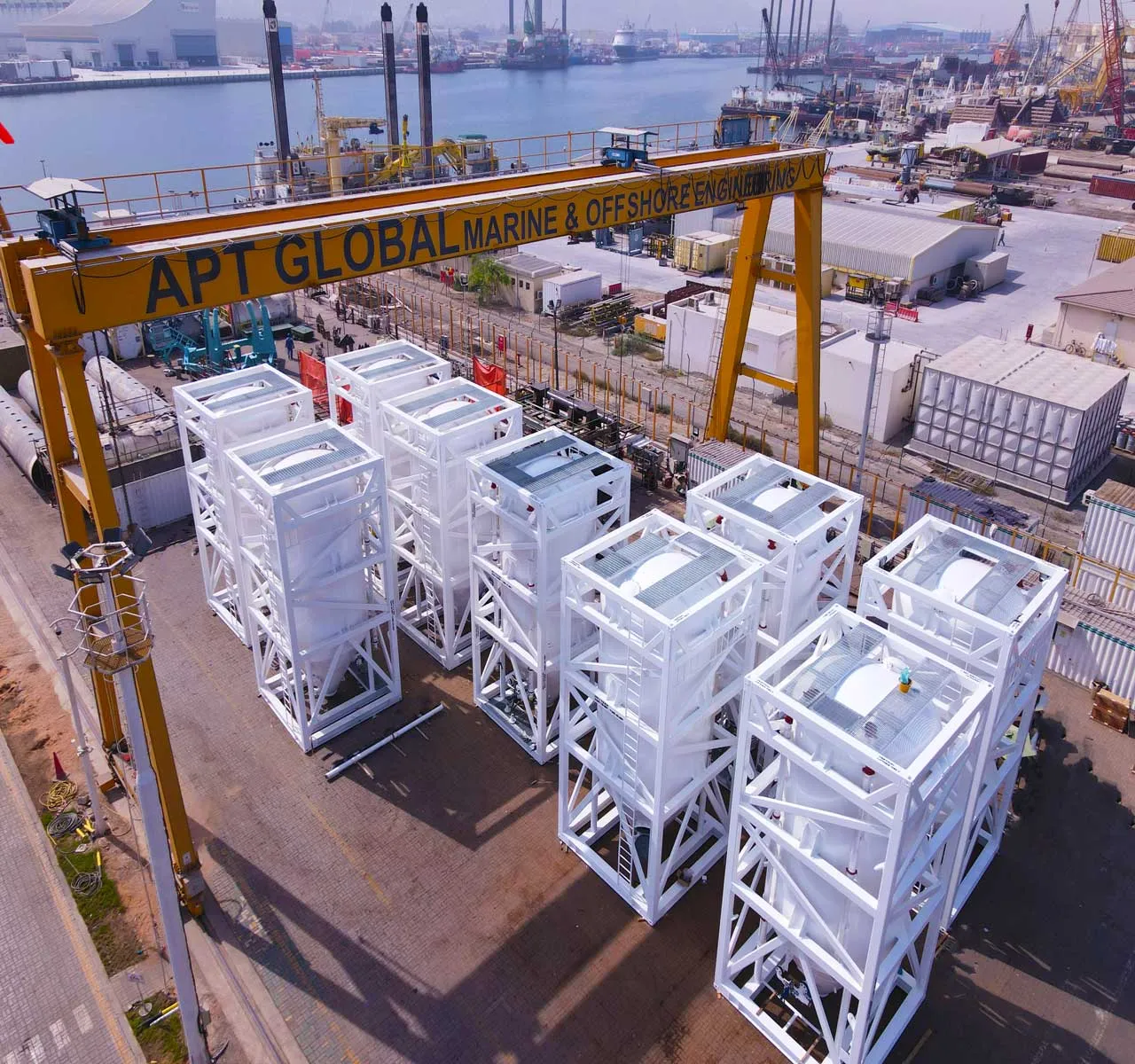

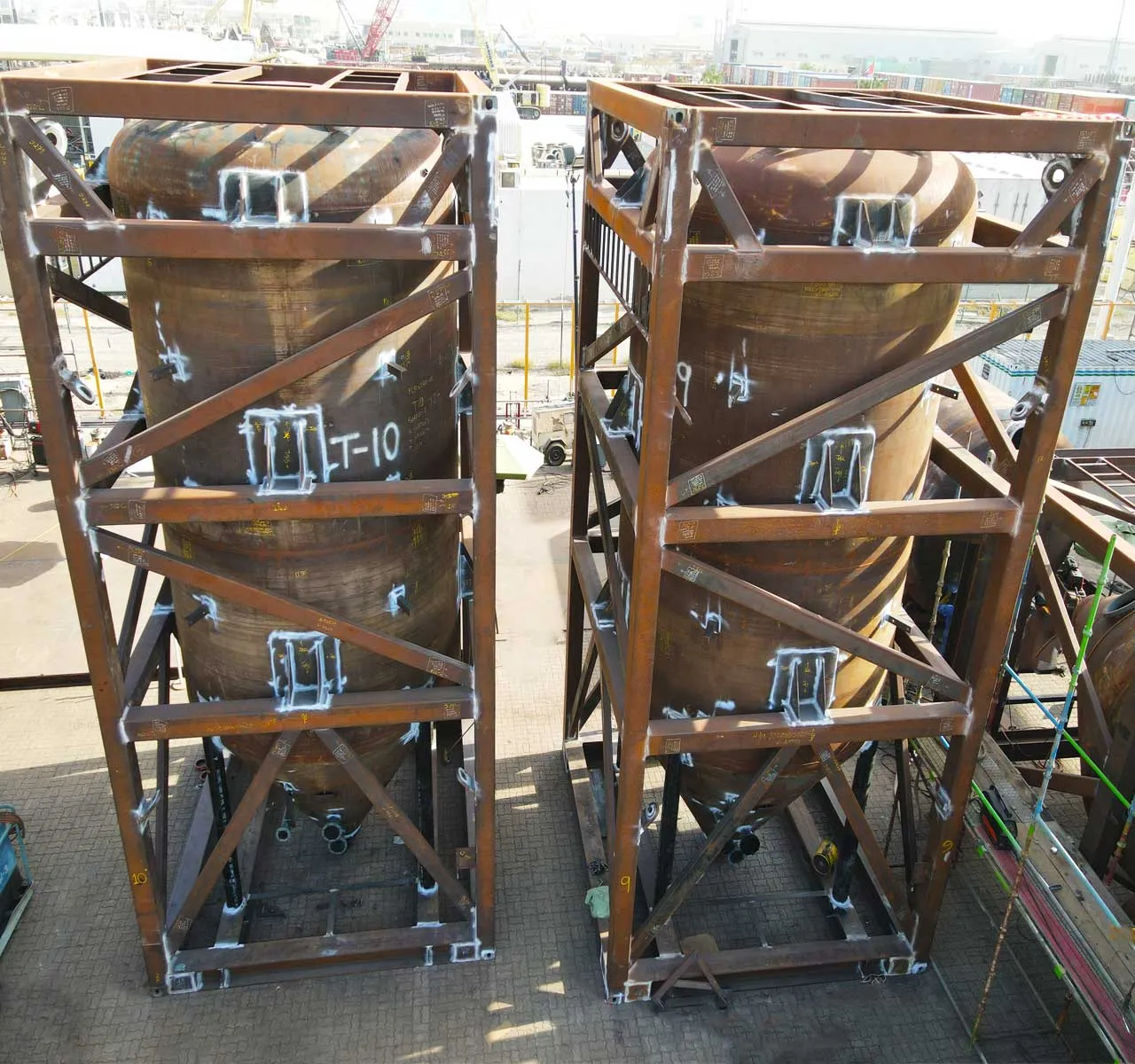

100MT Vertical Grout Silos & lifting cage

  • Size : L 4500 mm x W 4500 mm x H 9000mm
  • Volume : 79300(liters)
  • Maximum filling weight : 100000 (kg’s)
  • Fluid group : 2(gas)
  • Hydrotest date : 05-05-2023
  • Orientation of vessel : vertical
  • Design pressure (PS) : 0.3(3.0) Mpa(g) bar(g)
  • Test pressure (PS) : 0.429(4.29) Mpa(g) bar(g)
  • MAWP : 0.3(3.0) @ 85°C Mpa(g) (Bar(g))
  • Operating pressuere : 0.2(2.0) Mpa(g) (Bar(g))
  • Design temperature (TS max) : 85°C
  • Operating temperature : 60°C
  • MSMT at MAWP (TSmin) : (-) 20 @ 0.3 Mpa(g) (3.0)(bar(g))°C
  • 100MT GROUT SILO(V) – (ASME SEC. VIII DIV.1 ED.2021 + PED 2014/68/EU) with 100MT POU LIFTING CAGE (DNV– 2.7-3 Portable Offshore Units)
